G for geothermal

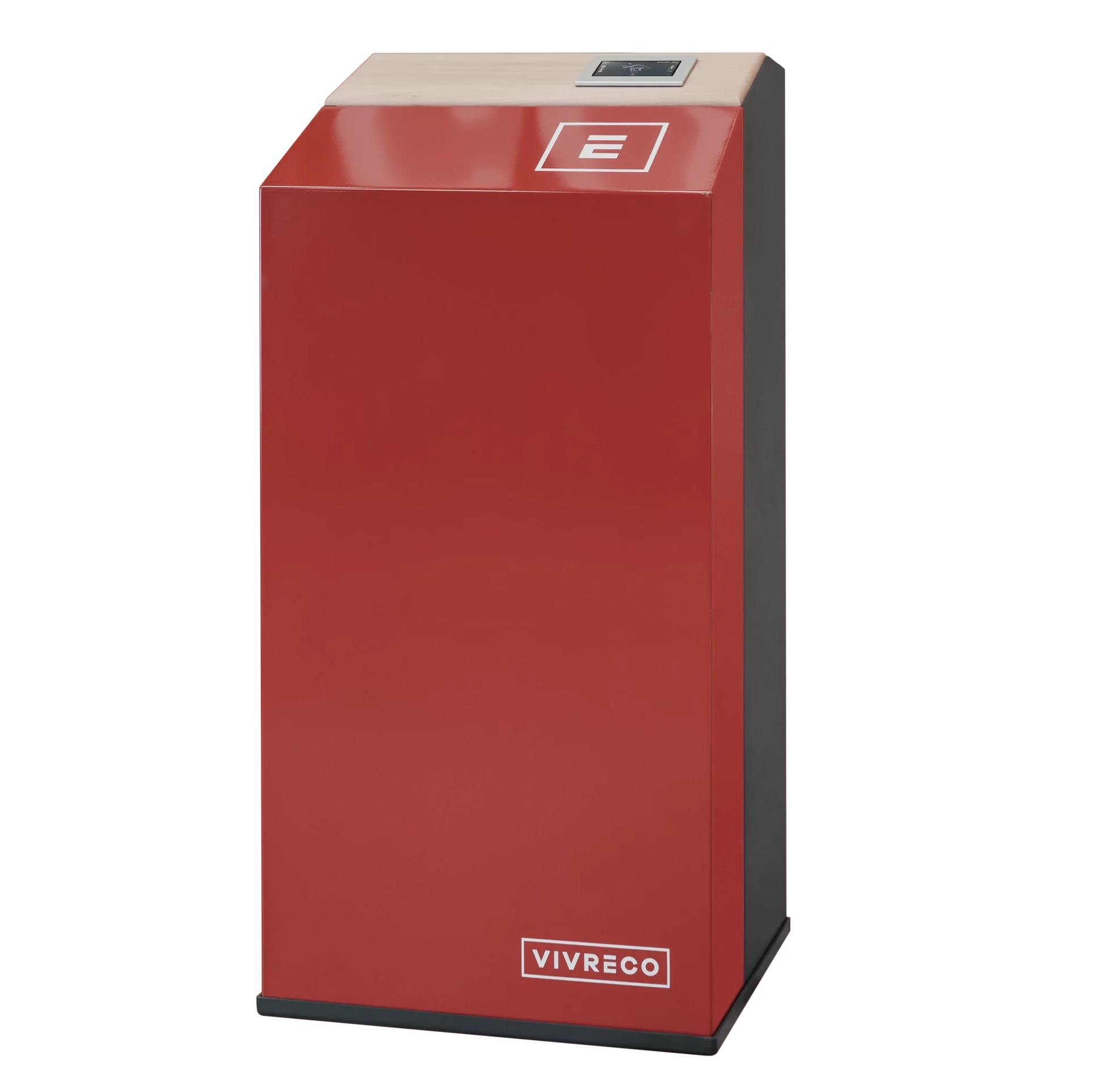

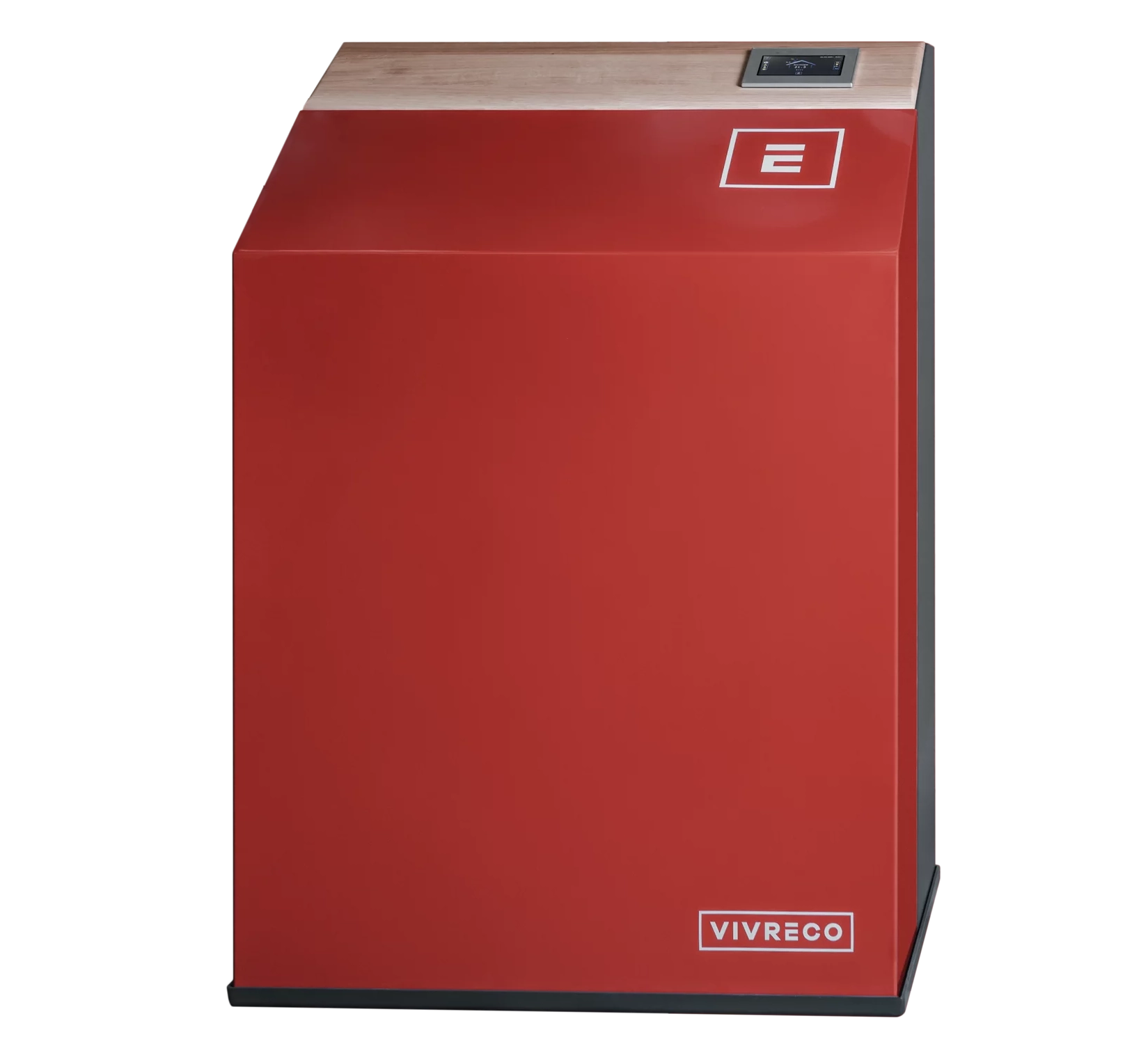

G & GT
The G range draws free energy directly from the ground, using horizontal collectors or vertical probes, for outputs from 8 to 14 kW for the smaller models and 16 to 32 kW for the larger ones, with one or two compressors. Twin-compressor models adapt their output to heating needs, limiting the number of operating cycles for greater savings and durability. For lower outputs, see our Mini-Géo range.
Why choose G & GT?
-
Powerful
The G range comes with one or two compressors: it covers a wide range of needs and can optionally provide domestic hot water or cooling in summer. Up to 4 units can be installed in cascade for commercial buildings or large installations.
-
Versatile
The G range can be installed on any type of system (with or without a buffer tank, underfloor heating, radiators, swimming pool…). The controller, developed entirely by our team, can manage up to 10 different heating zones.
-
Quiet
Its insulated casing and a refrigerant circuit mounted on an oscillating plate with silentblocs make the G range very discreet (around 50 dB).
-
Connected
Like all VIVRECO heat pumps, the G range features WebControl technology, so it can be controlled from anywhere with a simple Internet connection, through a dedicated space in a mobile app. Our after-sales service is alerted directly in the event of a fault.
-
Special functions
The VIVRECO controller fitted to the G range can manage a back-up heating system or a domestic hot water loop, keeping the water hot even when there is a long run between the tank and the tap.
-
Long-lasting
VIVRECO is committed to building sturdy, durable and repairable heat pumps, for genuine sustainability and greater savings. The G range casing is made of powder-coated electro-galvanised steel.
G & GT
Key figures
GT models are the twin-compressor versions. For even higher outputs, larger ranges are available on request: contact us.
Scroll the table sideways to see every model.
| Model | G 8-V5 S | G 10-V5 S | G 11-V5 S | G 14-V5 S | G 8-V5 T | G 10-V5 T | G 11-V5 T | G 14-V5 T | G 16-V5 T |
|---|---|---|---|---|---|---|---|---|---|
| Power supply (V) | 230V 1~ | 230V 1~ | 230V 1~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ |
| Warm climate · ETAS ηs (%) high temperature | 156 | 159 | 157 | 160 | 156 | 159 | 157 | 160 | 161 |
| Warm climate · ETAS ηs (%) low temperature | 196 | 199 | 197 | 200 | 196 | 199 | 197 | 200 | 202 |
| Average climate · ETAS ηs (%) high temperature | 154 | 156 | 154 | 157 | 154 | 156 | 154 | 157 | 158 |
| Average climate · ETAS ηs (%) low temperature | 194 | 197 | 195 | 198 | 194 | 197 | 195 | 198 | 199 |
| Cold climate · ETAS ηs (%) high temperature | 155 | 157 | 155 | 158 | 155 | 157 | 155 | 158 | 158 |
| Cold climate · ETAS ηs (%) low temperature | 197 | 200 | 198 | 201 | 197 | 200 | 198 | 201 | 202 |
| Heat output (kW) at B0/W35 (collector -3/0, heating 30/35) | 7.26 | 9.1 | 10.45 | – | 7.15 | 9.08 | 10.2 | 12.8 | 12.8 |
| Dimensions W x H x D (mm) | 540 x 1200 x 530 | ||||||||
| Weight (kg) | 135 | 145 | 145 | 135 | 145 | 145 | 160 | 165 | 165 |
| Model | G 28-V5 T | G 34-V5 T | G 40-V5 T | G 46-V5 T | GT 16-V5 S | GT 20-V5 S | GT 22-V5 S | GT 16-V5 T | GT 20-V5 T | GT 22-V5 T | GT 28-V5 T | GT 32-V5 T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power supply (V) | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ | 230V 1~ | 230V 1~ | 230V 1~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ |
| Warm climate · ETAS ηs (%) high temperature | 150 | 154 | 154 | 151 | 157 | 159 | 157 | 157 | 159 | 157 | 160 | 161 |
| Warm climate · ETAS ηs (%) low temperature | 188 | 194 | 188 | 186 | 197 | 200 | 198 | 197 | 200 | 198 | 201 | 202 |
| Average climate · ETAS ηs (%) high temperature | 148 | 152 | 152 | 149 | 155 | 157 | 155 | 155 | 157 | 155 | 158 | 158 |
| Average climate · ETAS ηs (%) low temperature | 186 | 191 | 186 | 184 | 195 | 198 | 198 | 195 | 198 | 198 | 199 | 200 |
| Cold climate · ETAS ηs (%) high temperature | 148 | 152 | 152 | 149 | 155 | 157 | 155 | 155 | 157 | 155 | 158 | 159 |
| Cold climate · ETAS ηs (%) low temperature | 188 | 193 | 188 | 186 | 198 | 200 | 196 | 198 | 200 | 196 | 201 | 202 |
| Heat output (kW) at B0/W35 (collector -3/0, heating 30/35) | 26.4 | 31.7 | 38.6 | 43.7 | 14.52 | 18.2 | 19.68 | 14.3 | 18.16 | 20.4 | 25.6 | 30.2 |
| Dimensions W x H x D (mm) | 760 x 1130 x 610 | |||||||||||
| Weight (kg) | 185 | 195 | 200 | 210 | 210 | 215 | 220 | 210 | 215 | 220 | 230 | 230 |
