Aquathermal heating
W & WT

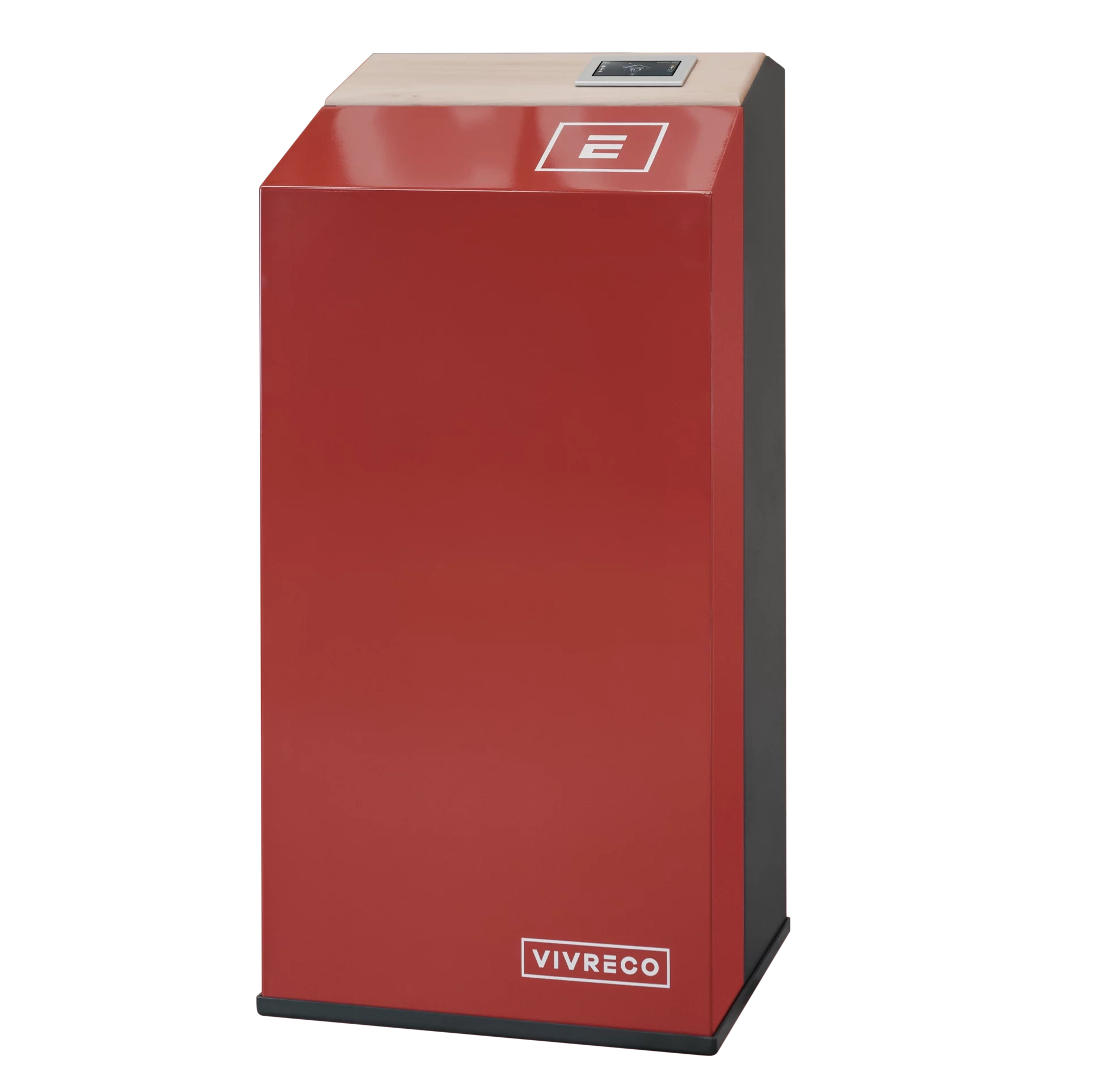

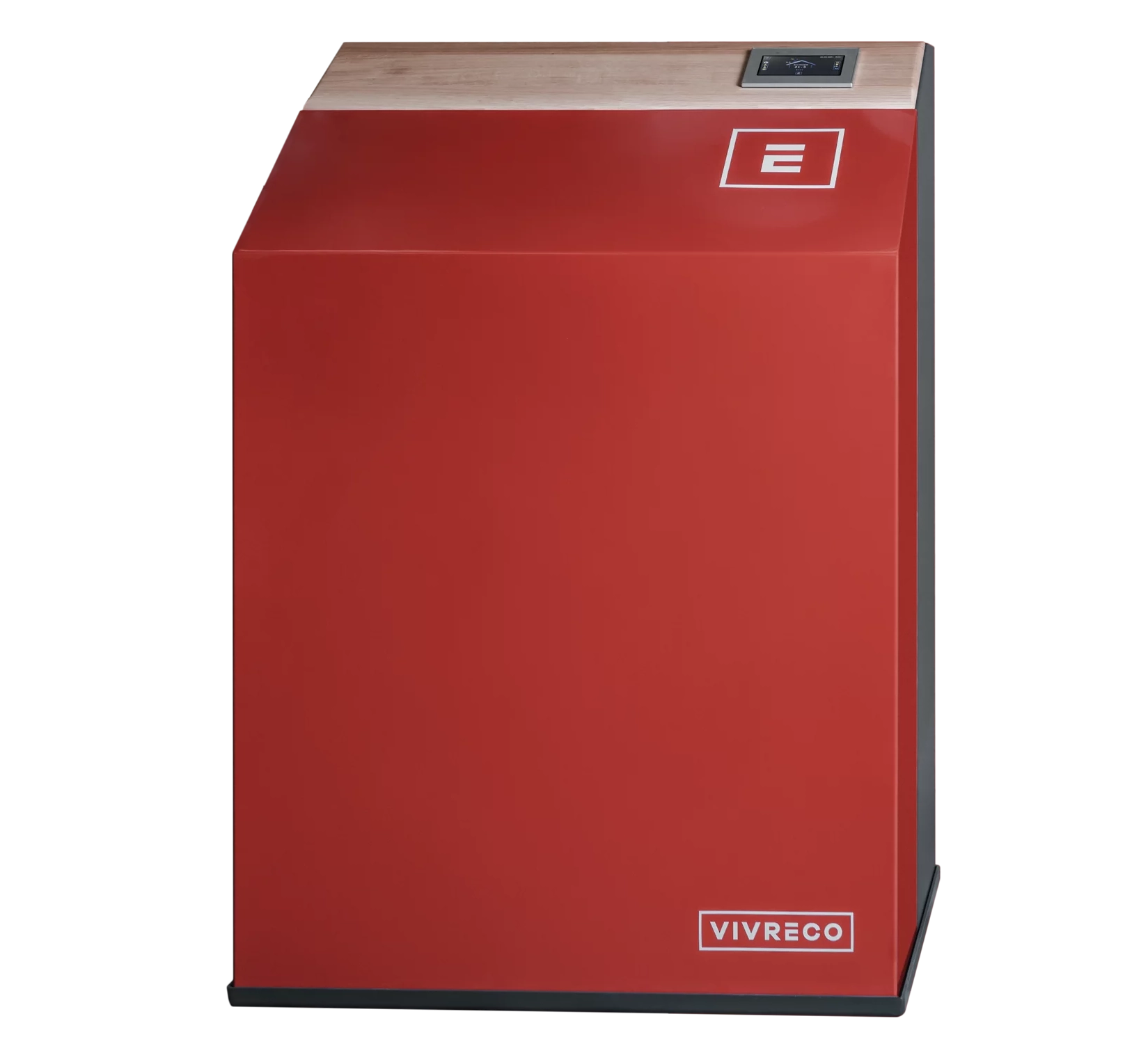

The W range draws heat directly from groundwater, whose temperature stays almost constant all year round, for outputs from 8 to 44 kW. Two casing sizes: one for single-compressor models up to 22 kW, and a larger one for twin-compressor models and higher outputs.
Why choose W & WT?
-
Powerful
The W range covers a wide range of needs and can optionally provide domestic hot water or cooling in summer. Up to 4 units can be installed in cascade for commercial buildings or large installations.
Its dedicated SPIREC exchanger removes the need for an intermediate exchanger, giving a better coefficient of performance. -
Versatile
The W range can be installed on any type of system (with or without a buffer tank, underfloor heating, radiators, swimming pool…). The controller, developed entirely by our team, can manage up to 10 different heating zones.
-
Quiet
Its insulated casing and a refrigerant circuit mounted on an oscillating plate with silentblocs make the W range very discreet (around 50 dB).
-
Long-lasting
VIVRECO is committed to building sturdy, durable and repairable heat pumps, for genuine sustainability and greater savings. The W casing is made of powder-coated electro-galvanised steel.
-
Special functions
The VIVRECO controller fitted to the W range can manage a back-up heating system or a domestic hot water loop, keeping the water hot even when there is a long run between the tank and the tap.
-
Connected
Like all VIVRECO heat pumps, the W range features WebControl technology, so it can be controlled from anywhere with a simple Internet connection, through a dedicated space in a mobile app. Our after-sales service is alerted directly in the event of a fault.
W & WT
Key figures
The power of each model in kW is given in its name: the W 8, for example, delivers 8 kW. WT models have two compressors, W models one. Single-phase models end with the letter S, three-phase models with the letter T.
Scroll the table sideways to see every model.
| Model | W 8-V5 S | W 10-V5 S | W 13-V5 S | W 15-V5 S | W 8-V5 T | W 10-V5 T | W 13-V5 T | W 15-V5 T | W 18-V5 T | W 22-V5 T |
|---|---|---|---|---|---|---|---|---|---|---|
| Power supply (V) | 230V 1~ | 230V 1~ | 230V 1~ | 230V 1~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ |
| Warm climate · ETAS ηs (%) high temperature | 201 | 203 | 205 | 205 | 201 | 203 | 205 | 205 | 206 | 208 |
| Warm climate · ETAS ηs (%) low temperature | 251 | 255 | 258 | 261 | 251 | 255 | 258 | 261 | 257 | 262 |
| Average climate · ETAS ηs (%) high temperature | 198 | 200 | 201 | 202 | 198 | 200 | 201 | 202 | 203 | 205 |
| Average climate · ETAS ηs (%) low temperature | 249 | 252 | 255 | 258 | 249 | 252 | 255 | 258 | 254 | 259 |
| Cold climate · ETAS ηs (%) high temperature | 200 | 201 | 202 | 203 | 200 | 201 | 202 | 203 | 203 | 205 |
| Cold climate · ETAS ηs (%) low temperature | 200 | 201 | 202 | 203 | 200 | 201 | 202 | 203 | 203 | 205 |
| Heat output (kW) at W10/W35 (groundwater 10/7, heating 30/35) | 7.14 | 9.97 | 12.5 | 14.1 | 7.04 | 9.91 | 12.45 | 14.1 | 17.55 | 20.7 |
| Dimensions W x H x D (mm) | 540 x 1200 x 530 | |||||||||
| Weight (kg) | 160 | 165 | 170 | 180 | 160 | 165 | 170 | 180 | 190 | 195 |
| Model | W 37-V5 T | W 45-V5 T | W 55-V5 T | WT 16-V5 S | WT 20-V5 S | WT 26-V5 S | WT 30-V5 S | WT 16-V5 T | WT 20-V5 T | WT 26-V5 T | WT 30-V5 T | WT 36-V5 T | WT 44-V5 T |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Power supply (V) | 400V 3~ | 400V 3~ | 400V 3~ | 230V 1~ | 230V 1~ | 230V 1~ | 230V 1~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ | 400V 3~ |
| Warm climate · ETAS ηs (%) high temperature | 194 | 198 | 192 | 203 | 204 | 206 | 206 | 203 | 204 | 206 | 206 | 207 | 209 |
| Warm climate · ETAS ηs (%) low temperature | 246 | 253 | 238 | 254 | 256 | 260 | 262 | 254 | 256 | 260 | 262 | 258 | 263 |
| Average climate · ETAS ηs (%) high temperature | 191 | 195 | 189 | 200 | 201 | 202 | 203 | 200 | 201 | 202 | 203 | 203 | 205 |
| Average climate · ETAS ηs (%) low temperature | 243 | 250 | 235 | 251 | 253 | 257 | 259 | 251 | 253 | 257 | 259 | 255 | 260 |
| Cold climate · ETAS ηs (%) high temperature | 191 | 195 | 189 | 200 | 201 | 203 | 203 | 200 | 201 | 203 | 203 | 204 | 205 |
| Cold climate · ETAS ηs (%) low temperature | 246 | 253 | 237 | 254 | 256 | 260 | 262 | 254 | 256 | 260 | 262 | 258 | 263 |
| Heat output (kW) at W10/W35 (groundwater 10/7, heating 30/35) | 31.1 | 36.9 | 44.4 | 14.28 | 19.94 | 25 | 28.2 | 14.08 | 19.82 | 24.9 | 28.2 | 35.1 | 41.4 |
| Dimensions W x H x D (mm) | 760 x 610 x 1350 | ||||||||||||
| Weight (kg) | 230 | 235 | 240 | 190 | 195 | 200 | 205 | 190 | 195 | 200 | 205 | 210 | 215 |
